ADC-V729 Floodlight Outdoor Camera Guide

This guide covers everything you need to know about the Brinks Home™ Outdoor Floodlight Camera (ADC-V729), including features, setup, troubleshooting, and tips for getting the most out of your camera.

Navigate to the section you're looking for using the links below:

Product Overview

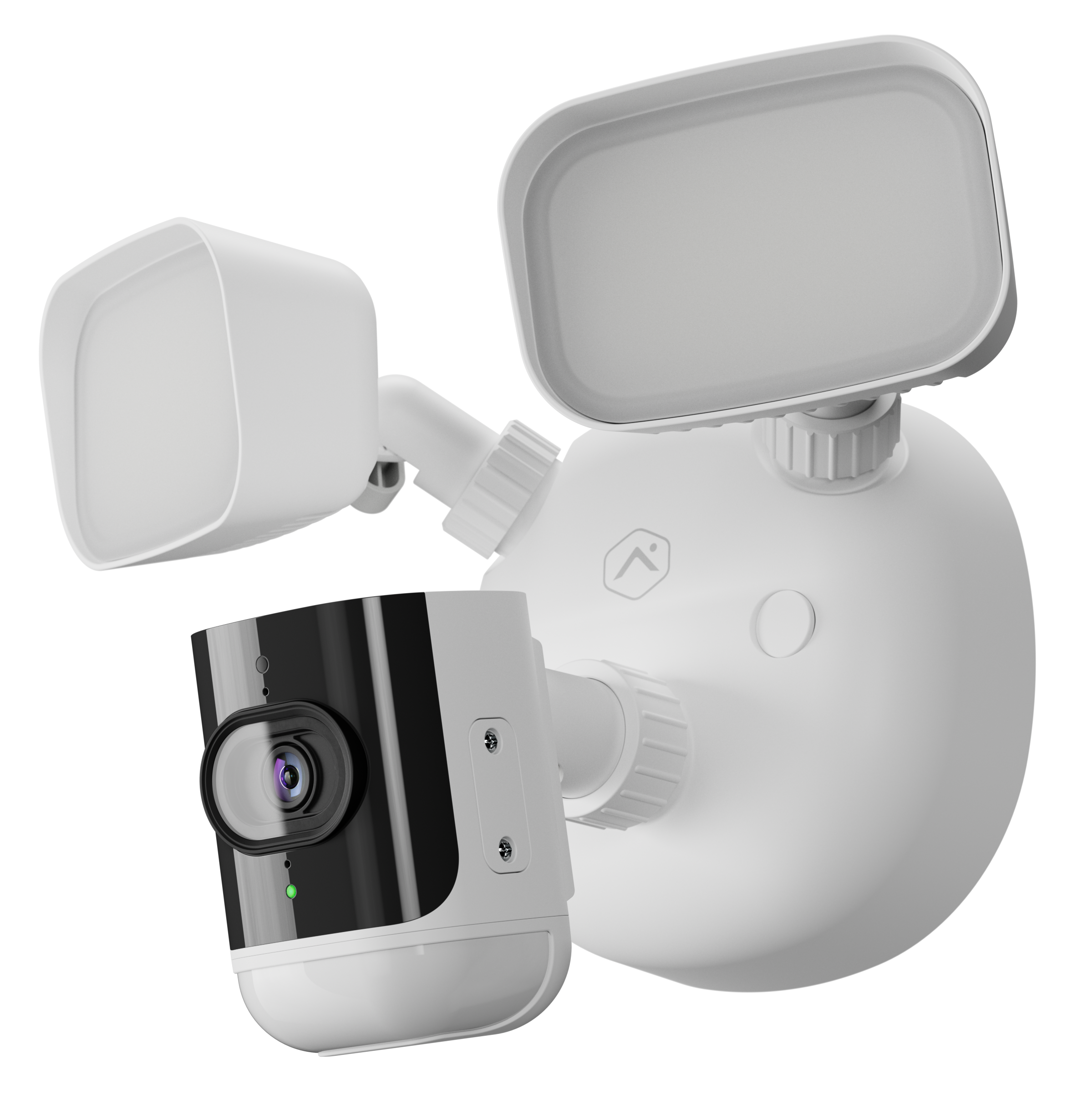

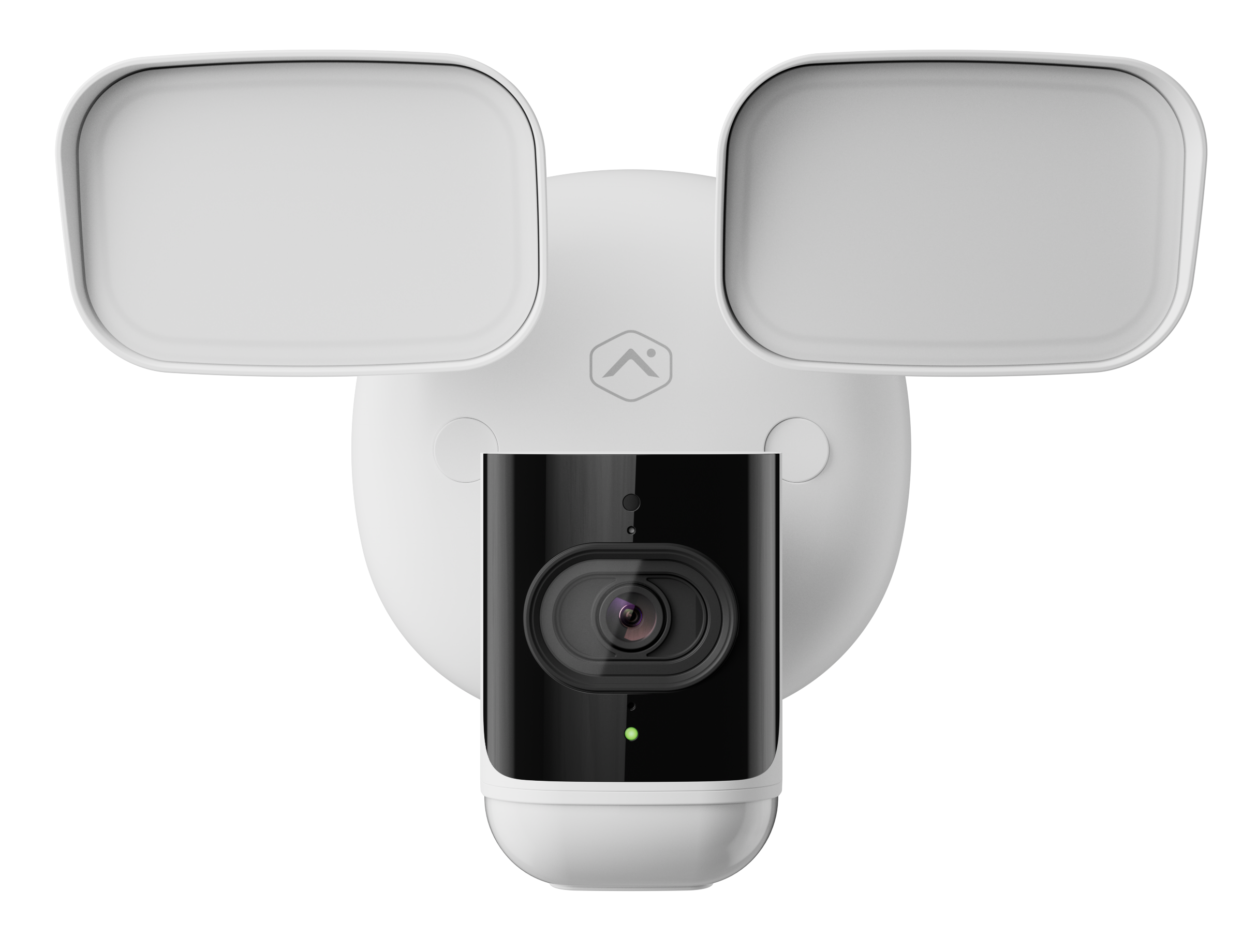

Product Overview

The Brinks Home Outdoor Floodlight Camera (ADC-V729) is a smart outdoor security camera with advanced Video Analytics, 3000 Lumen Floodlights, and two-way audio, empowering you to detect and deter unwanted activity in real time. With options for cloud storage or continuous 24/7 onboard recording, it offers flexible protection tailored to your needs.

Deter intruders with powerful strobing flashlights, flashing red/blue warning lights, and a 105db speaker. You can customize the lights to your needs with multiple options such as person/vehicle/animal detection triggers or motion triggers, and choose between a full floodlight or strobe effect.

Getting Started

Features

Powerful strobing floodlights
Two-way audio to hear and speak with visitors
Perimeter Guard
Microphone and speaker
Video Analytics for smarter detection and relevant alerts
SD Card onboard recording with Smart View for continuous, local, encrypted recordings
4MP live view resolution with High Dynamic Range (HDR)
Wi-Fi (2.4 or 5 GHz)
Audio included in recorded clips for additional awareness
Compatible with the Brinks Home™ Mobile App

Setup Instructions

Connecting to Wi-Fi Using AP Mode

Step-By-Step Instructions:

Hold the reset button for 3 seconds until the LED flashes white.

Open your smartphone's Wi-Fi settings and look for ADC-V729 (xx:xx:xx), then press Connect.
Open a web browser and go to http://v729install.com, then click Scan to search for Wi-Fi networks.
Select your Wi-Fi network, scroll up and enter your Wi-Fi credentials, press Submit, then OK.
The camera LED will turn green if successful, or red if there is a failure.

Note: Once connected to Wi-Fi, you will need to enroll the camera to your account through the app or website using the steps listed in this article.

If you encounter issues enrolling through AP Mode, follow the WPS Mode steps to connect your camera to your Wi-Fi.

Connecting to Wi-Fi Using WPS Mode

Step-By-Step Instructions:

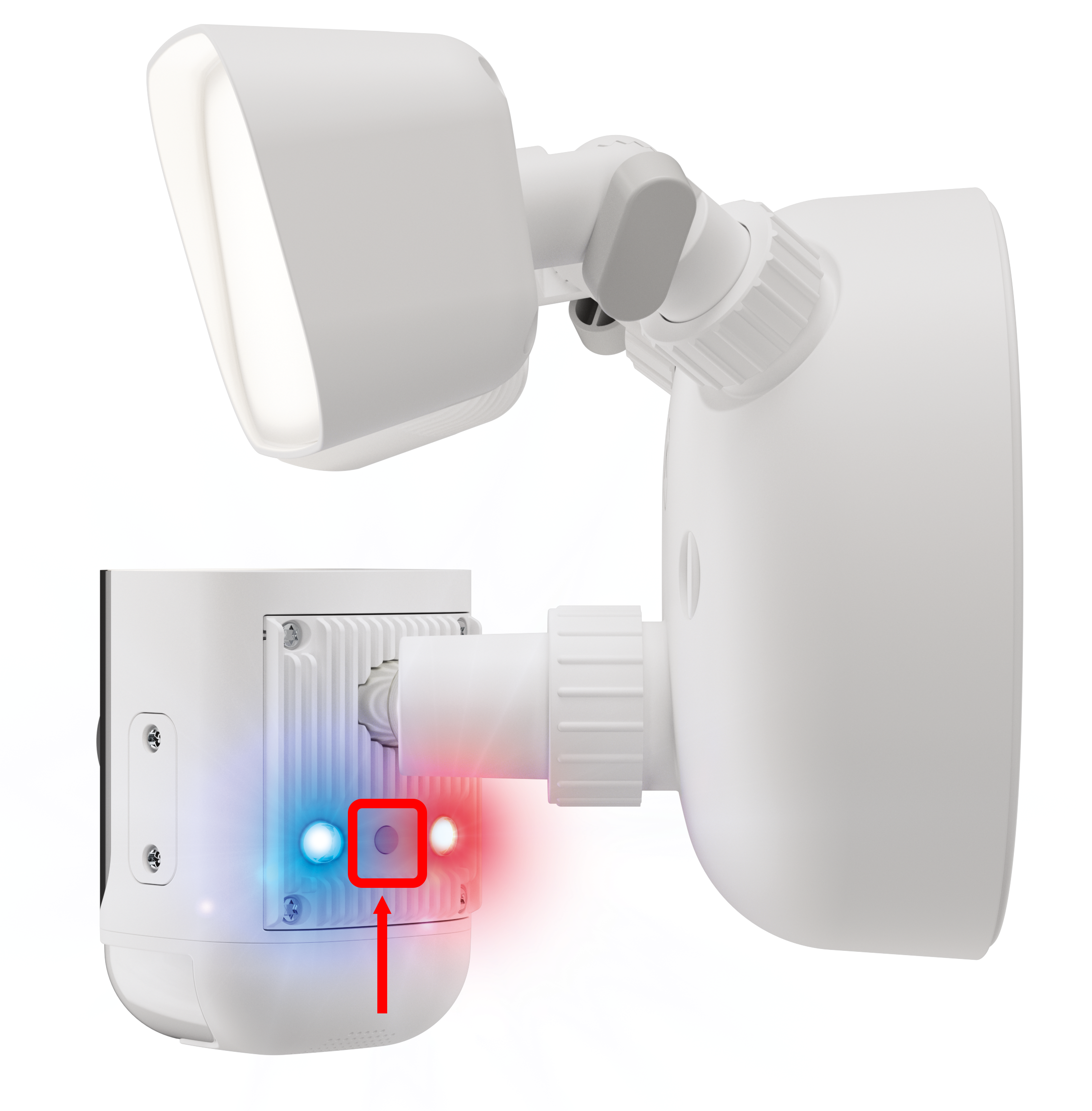

Hold the reset button for 6 seconds until the LED flashes blue.

Press and release the router's WPS button or enable WPS through the router's settings.
The LED on the camera may turn red during this step. Wait up to 2 minutes for the LED to flash then turn solid green to confirm a successful connection.

Note: Once connected to Wi-Fi, you will need to enroll the camera to your account through the app or website using the steps listed in this article.

Add Camera Using the Brinks Home Mobile App

Note: The camera must be connected to Wi-Fi first so it can be added to your account.

Step-By-Step Instructions:

Select Settings by pressing the gear icon in the upper right-hand corner.

Select Add Device +, then select the video device you want to add.

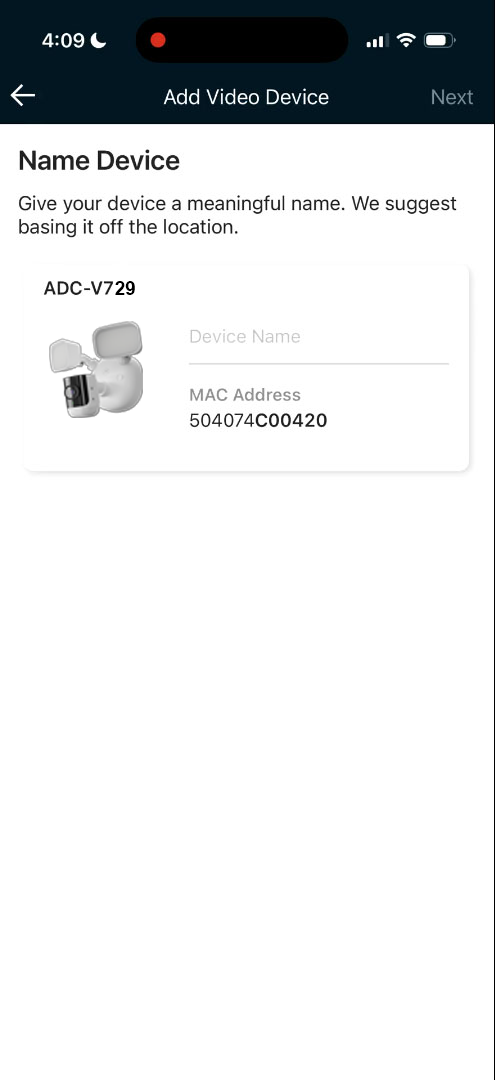

The system should detect the camera. Enter the camera name and click Next.

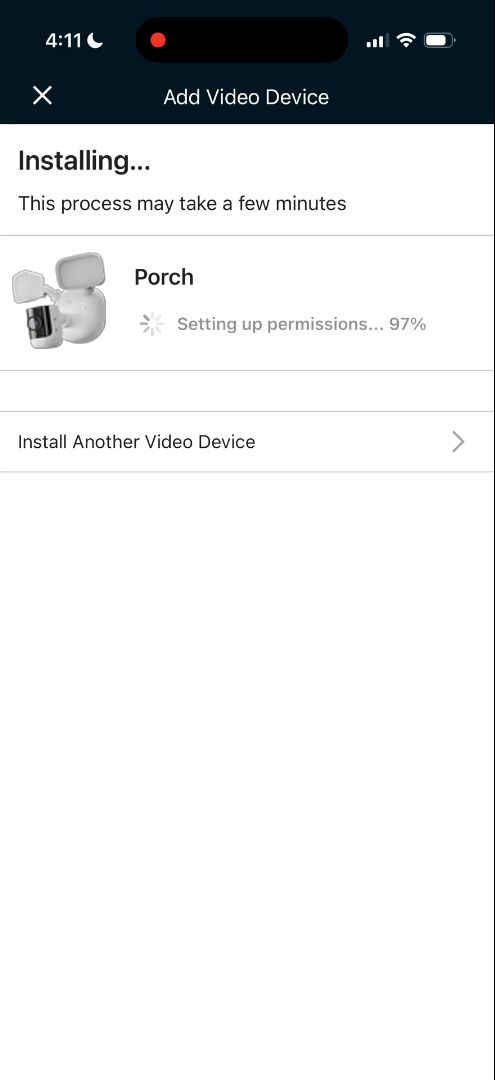

The camera will be added to your account, which can take several minutes.

When finished, select Live to view images from the newly installed camera.

Add Camera Using the Brinks Home Alarm.com Website

Note: The camera must be connected to Wi-Fi first so it can be added to your account.

Step-By-Step Instructions:

Select Settings.

Scroll to the bottom of the page and select Add Video Device.

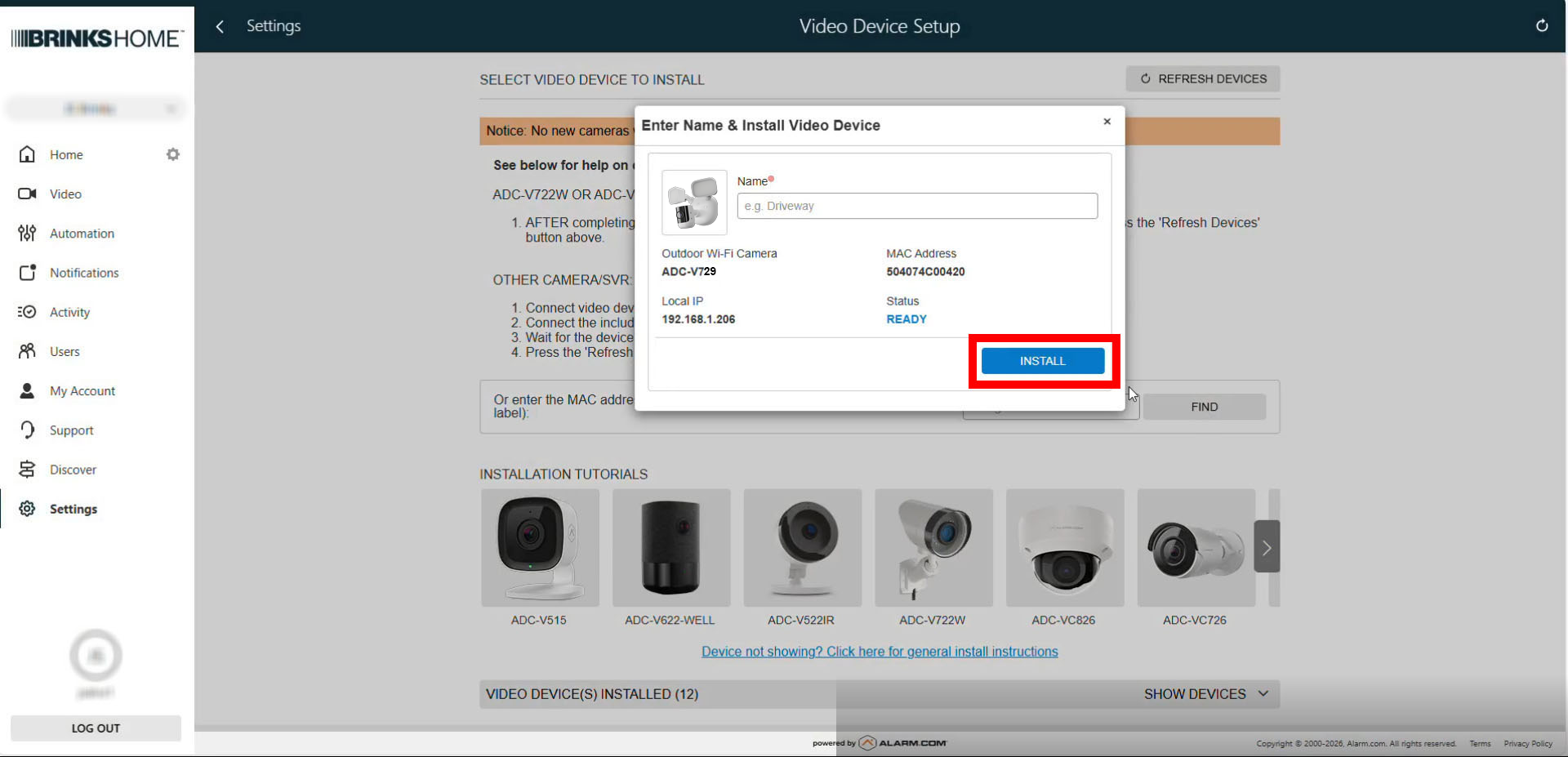

The system should detect the camera. Enter the camera name and click Install.

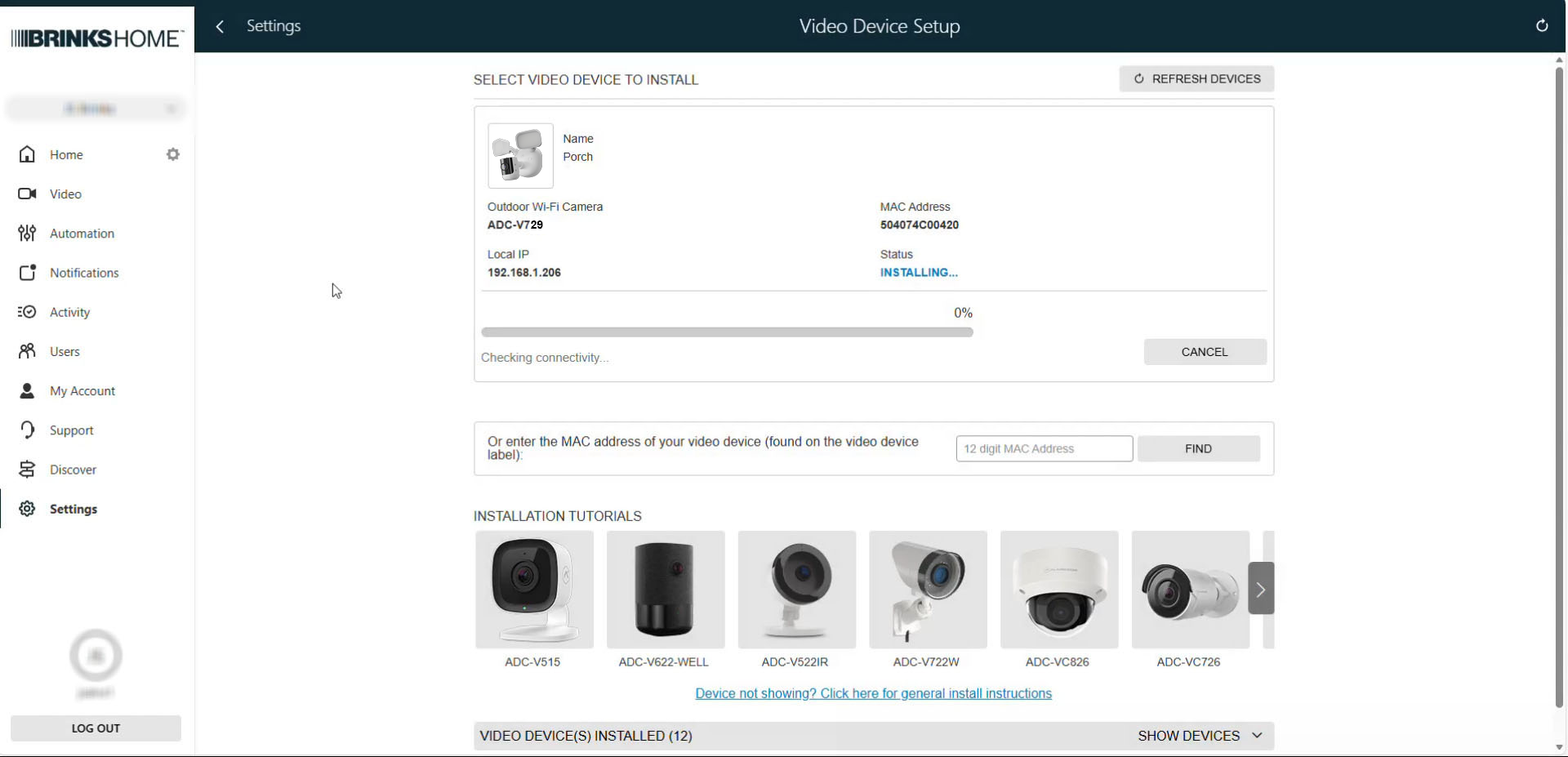

The camera will be added to your account, which can take several minutes.

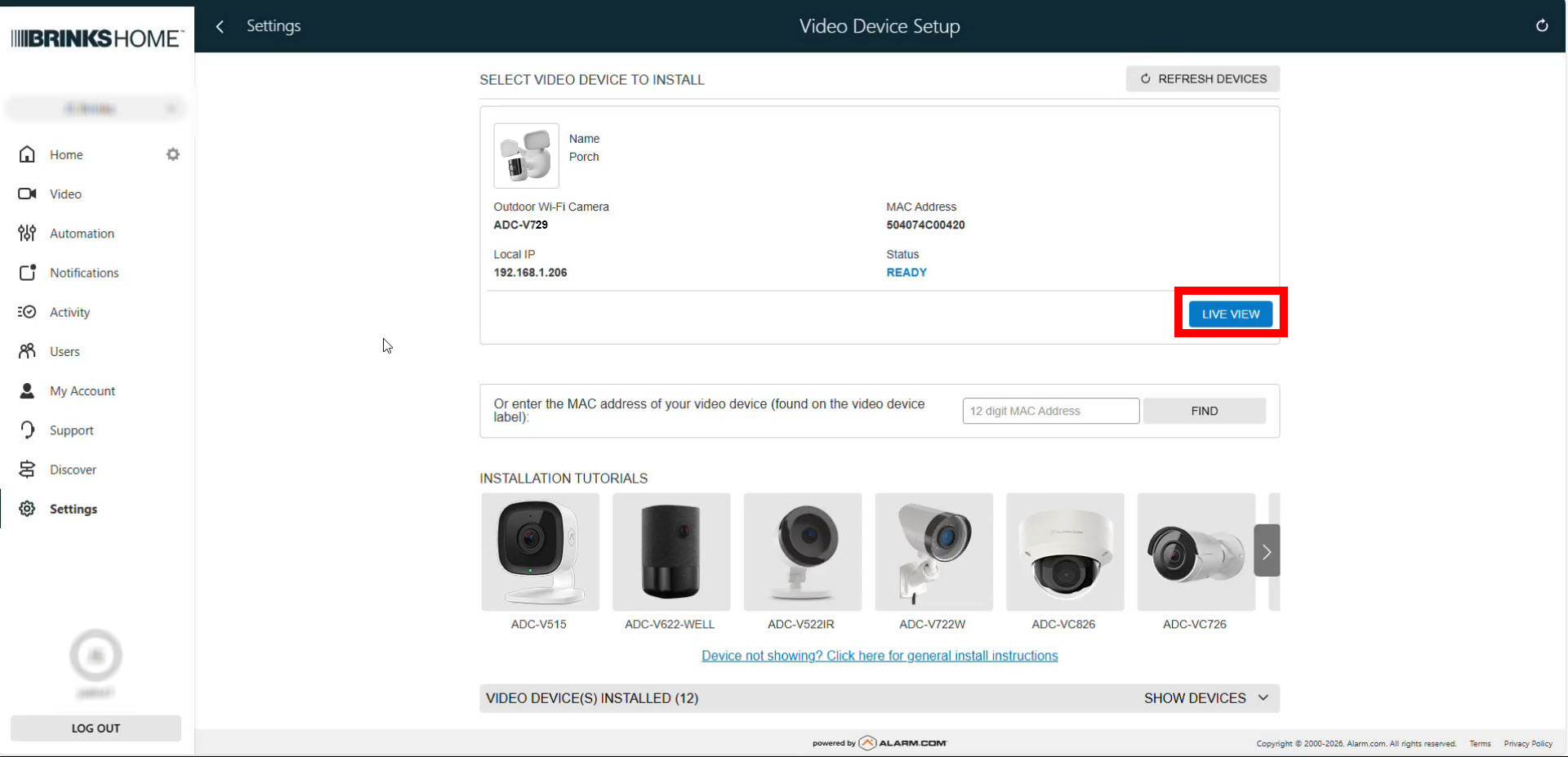

When finished, select Live View to view images from the newly installed camera.

After adding your camera, you can set up recording rules. Click here to learn more.

Specifications

2688x1520 pixel video resolution
4000K, 3000 Lumens White Floodlights
Red/Blue warning lights
49' infrared night-vision range
MicroSD card slot
Wi-Fi with two-way audio
24V DC 2A power adapter (included)
Operating Temperature of -40° F to 122° F

Factory Default

Warning: Performing a factory reset will erase all data. The camera must be re-added to your account to restore functionality.

Press and hold the reset button on the camera for approximately 15 seconds until the LED flashes red and green.

Release the button to allow the camera to reboot to factory default settings.
If the camera was previously installed on your account, delete it from the account before reinstalling.

Troubleshooting

If you're experiencing issues with your camera, try the following troubleshooting steps:

Power Cycle the Camera: Unplug the power adapter, wait for about 10 seconds, then plug it back in to reboot the camera.
Check Wi-Fi Signal Strength: Ensure the camera is within range of your Wi-Fi router. If the signal is weak, consider moving the camera closer to the router or using a Wi-Fi extender.
Factory Reset the Camera: If issues persist, perform a factory reset.

If these steps don't resolve the issue, you can text us at 469.513.8685 or chat with us 24/7 for further assistance.

LED Reference Guide

Color & Pattern	Status	Recommended Action
No Light	Powered off	Verify camera power adapter is plugged in
Solid Green	Connected online	Access live video, no further action needed.
Solid Red	Not connected to network	Connect to Wi-Fi via AP or WPS.
Flashing Blue	Pairing via WPS	Connect camera to Wi-Fi using WPS.
Flashing Green	Local network connection	Wait for LED to turn solid green.
Flashing Red	Camera booting up	Wait for camera to finish booting (~2 min.)
Flashing White	Pairing via Access Point	Connect Camera to Wi-Fi using AP.
Flashing Yellow	Power cycling	Wait for the camera to finish power cycling (~2 min.)
Flashing Blue/Green	Firmware updating	Wait for the camera to finish updating it's firmware
Flashing Red/Green	Factory reset in progress	Allow factory reset to complete (~2 min.)

If you need further assistance, text us at 469.513.8685 or chat with us 24/7 for an immediate response.
